Description

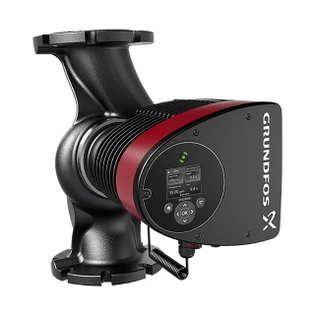

The Grundfos MAGNA3 circulator pump is the ideal choice for almost any building project – old or new. With its unrivalled energy efficiency, all-encompassing range and built-in communication capabilities, MAGNA3 is ideal for engineers and specifiers looking to create high-performance heating and cooling systems. The pump is maintenance-free due to the canned-rotor type design. This also means that pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. MAGNA3 features an intuitive display and allows you to connect wirelessly with the Grundfos GO Remote app, giving you access to advanced reporting and monitoring. MAGNA3 model E has Bluetooth, which allows you to connect directly to Grundfos Go app on your smart phone without any need for a dongle. The pump includes fieldbus communication via CIM modules as well as analog and digital inputs and configurable relays. Control features include AUTOADAPT and FLOWADAPT. FLOWADAPT which reduces the need for throttling valves, thus cutting costs on system components
Specs
Product name: MAGNA3 100-120 GF
Product No: 98126860
Rated flow: 165 US GPM
Maximum head: 39.37 ft
Pump housing: Cast iron
Range of ambient temperature: 32 .. 104 °F
Maximum operating pressure: 174.05 psi
Pumped liquid: Water
Liquid temperature range: 14 .. 230 °F
Mains frequency: 60 Hz
Rated voltage: 1 x 208-230 V
