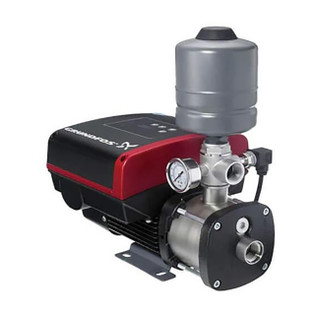

Grundfos 98548112 CMBE 3-30 Booster Pump 1 x 200-240V, 18.5 GPM

mpn: 98548112 SKU: GR98548112 UPC: 5711496977497
(No reviews yet) Write a Review
$2,772.42
In Stock
Get it by Ships in 1 business day
Your Zip code helps us provide the most accurate delivery information.

Manuals (1)

Manual_Specification Sheet
Free Shipping This product ships free.
Easy Returns 90 day return policy.

Description

Note: Per the manufacturer, not installing the Grundfos 91136184 Inlet Pressure Switch Kit may invalidate the warranty.

The Grundfos CME Booster is a compact booster system for water supply in domestic applications. The integrated speed controller enables the CME Booster to keep constant pressure in the pipe system. A pressure sensor monitoring changes in the water consumption will signal the speed controller to change the motor speed to adapt performance to the new state. The CME Booster is very easy to install. When the pipework has been installed, it is all a matter of plugging the unit into a socket, and the system is operational. The CME Booster consists of:

  1. CME pump with integrated frequency converter
  2. 5-way valve
  3. expansion tank
  4. pressure gauge
  5. manometer

Features

  • Constant pressure, integrated speed control
  • Compact
  • Robust, stainless steel
  • Easy installation
  • Dry run protection

* The manufacturer recommends using the Grundfos 98046408 MI 301 Go Remote for optimal setup and troubleshooting of this pump.

Grundfos 98548112 CMBE 3-30 Booster Pump 1 x 200-240V, 18.5 GPM

(No reviews yet) Write a Review
mpn
98548112
SKU:
GR98548112
UPC:
5711496977497
$2,772.42

Description

Note: Per the manufacturer, not installing the Grundfos 91136184 Inlet Pressure Switch Kit may invalidate the warranty.

The Grundfos CME Booster is a compact booster system for water supply in domestic applications. The integrated speed controller enables the CME Booster to keep constant pressure in the pipe system. A pressure sensor monitoring changes in the water consumption will signal the speed controller to change the motor speed to adapt performance to the new state. The CME Booster is very easy to install. When the pipework has been installed, it is all a matter of plugging the unit into a socket, and the system is operational. The CME Booster consists of:

  1. CME pump with integrated frequency converter
  2. 5-way valve
  3. expansion tank
  4. pressure gauge
  5. manometer

Features

  • Constant pressure, integrated speed control
  • Compact
  • Robust, stainless steel
  • Easy installation
  • Dry run protection

* The manufacturer recommends using the Grundfos 98046408 MI 301 Go Remote for optimal setup and troubleshooting of this pump.

View AllClose

Additional Information

alsoNeedIDs:
17068,5213
alsoNeedLabel:
You Will Also Need
Spec_Rated pump speed:
3780 rpm
Spec_Primary shaft seal:
AQQE
Spec_Approvals and markings:
CE, CULUS
Spec_Curve tolerance:
ISO9906:2012 3B
Spec_Rubber:
EPDM
Spec_Type of cable plug:
NONE
Spec_Mains cable:
NO CABLE m
Spec_Tank volume:
0.528 gal
Spec_Rated Flow:
18.5 US GPM
Spec_Rated Head:
77.1 ft
Spec_Return Valve:
Yes
Spec_Start Pressure:
Integrated Frequency converter
Spec_Pump Housing:
Stainless steel DIN W.-Nr. 1.4301 AISI 304
Spec_Impeller:
Stainless steel DIN W.-Nr. 1.4301 AISI 304
Spec_T Max Amb:
122 °F
Spec_Flange Standard:
INTERNAL NPT THREAD
Spec_Pump Inlet:
NPT 1
Spec_Pump Outlet:
NPT 1
Spec_Pumped Liquid:
Water
Spec_Liquid Temperature Range:
32 .. 140 °F
Spec_Selected Liquid Temperature:
68 °F
Spec_Density:
62.29 lb/ft³
Spec_Rated power - P2:
1.5 HP
Spec_Main frequency:
60 Hz
Spec_Rated voltage:
1 x 200-240 V
Spec_Maximum current consumption:
6.70-5.60 A
Spec_Rated speed:
360-4000 rpm
Spec_Enclosure class (IEC 34-5):
IP55
Spec_Insulation class (IEC 85):
F
Manual_Specification Sheet:
https://24hr.supply/content/98548112_CMBE_330_IUCEDE.pdf
