Description
Discontinued, Replaced By
ALPHA 15-58FC 92603115 OR UPSe 15-58F 92603106

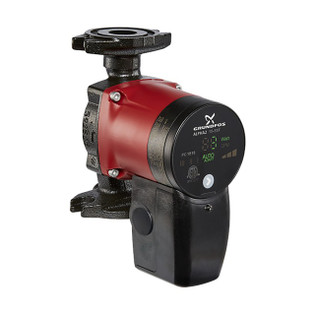

Features
- ALPHA1 can replace more than 30 other pump models
- Designed with trusted Grundfos ECM technology which has been used by Grundfos for more than 16 years
- ALPHA1 features the highest torque rating and most powerful start feature in its class which attempts to restart indefinitely every seven seconds in blocked rotor conditions
- ALPHA1 features an integrated check-valve and nut captures for flanges
- ALPHA1 features three-constant pressure control modes with easy to use push button settings
- Large LED display shows energy watt consumption and flow indicator in gallons per minute
- Magnetite resistant design with a stainless-steel bearing plate, robust ceramic shaft and ceramic bearing rings
- Extremely quiet 19.2 dB(A) operation – tested in one of the best European sound labs
- Available in both cast iron and stainless steel models
- ALPHA1 is compatible with either a line cord or terminal box for conduit connections
ALPHA1 Technical Data
Flow Q: max. 21 gpm (80 lpm)
Head, H: max. 19 ft. (5.8 m)
Motor: 1 x 115V
Liquid temp.: 36F to 230F (2oC to 110oC)
Working Pressure: Max. 150 PSI
Watts: 5-45 W
Amps: 0.65 A
USA Approvals: ETL, NSF 61, NSF 372
