Description

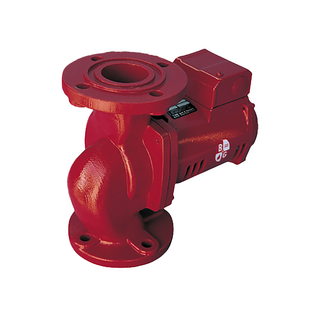

The Bell & Gossett 1BL063 PL‑130/2 is a cast-iron booster pump from the Series PL line. It has a 2/5 HP motor, a permanently lubricated design, and is suited for hydronic heating, radiant floor, geothermal, and cooling systems. Built with a rugged cast iron body and flanged inlet/outlet, it delivers high flow with reliable operation up to 150 PSI and 225°F.
Features
- Cast iron body, flanged inlet and outlet
- 2/5 HP motor, 115V, single‑phase
- Permanently lubricated bearings; sealed precision steel ball bearings
- Glass filled PPS impeller for strength and durability
- Mechanical seal: carbon on silicon carbide faces with stainless steel shaft sleeve
- Quiet, close‑coupled dry motor design
Specs
Model: PL‑130/2
Product Number: 1BL063
Horsepower: 2/5 HP
Voltage: 115V
Phase: 1 Phase
Motor Speed: 3200 RPM
Connection Size: 2" flanged x flanged
Body Material: Cast Iron
Product Number: 1BL063
Horsepower: 2/5 HP
Voltage: 115V
Phase: 1 Phase
Motor Speed: 3200 RPM
Connection Size: 2" flanged x flanged
Body Material: Cast Iron
