Description

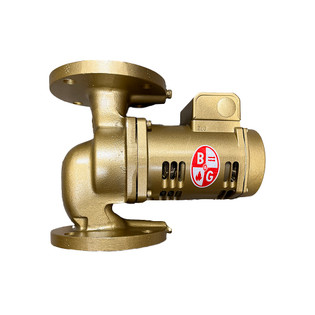

The Bell & Gossett 1BL072LF (Model PL‑130B/3) is an all‑bronze, lead‑free booster pump from the PL Series. It features a 2/5 HP motor, permanently lubricated bearings, and a 3" flanged inlet and outlet. Designed for hydronic, radiant, geothermal, and potable water applications where durability, high flow, and reliability are required.
Features
- All bronze body, lead‑free construction compliant for potable water
- Permanently lubricated motor, maintenance‑free design
- Flanged inlet and outlet connections, 3" size
- Solid “Stiff‑Shaft” design with precision alloy steel rotor
- XL‑11 precision-crafted bearing system
- Carbon on silicon carbide mechanical seal with stainless steel shaft sleeve
Specs
Model: PL‑130B/3
Product Number: 1BL072LF
Horsepower: 2/5 HP
Voltage: 115V
Phase: 1 Phase
Motor Speed: 3200 RPM
Maximum Working Pressure: 150 PSI
Maximum Operating Temperature: 225°F (107°C)
Connection Size: 3" flanged x flanged
Material – Body: Bronze, Lead‑Free
Product Number: 1BL072LF
Horsepower: 2/5 HP
Voltage: 115V
Phase: 1 Phase
Motor Speed: 3200 RPM
Maximum Working Pressure: 150 PSI
Maximum Operating Temperature: 225°F (107°C)
Connection Size: 3" flanged x flanged
Material – Body: Bronze, Lead‑Free
