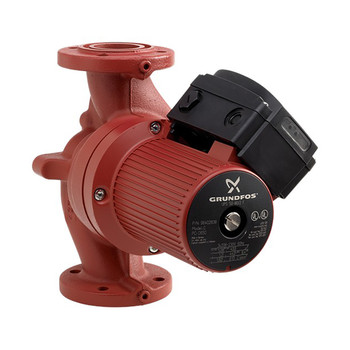

Grundfos 96402741 UPS 32-160 F B 3-Speed Bronze Circulator Pump 3/4 HP 3 x 208-230 V

(No reviews yet) Write a Review
mpn
96402741
SKU:
GR96402741
UPC:
5700390679705
Width:
8.38 (in)
Height:
12.06 (in)
Depth:
13.50 (in)
$2,802.00

Description

UPS 32-160 F B
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid.

In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible. The pump is characterized by:

  • 3 speed motor.
  • Ceramic radial bearings.
  • Carbon axial bearing.
  • Stainless steel rotor can, bearing plate and rotor cladding.
  • Aluminium alloy stator housing.
  • Bronze pump housing.
  • Stator with built-in thermal switch.

Specs

Product name: UPS 32-160 F B
Product No.: 96402741

Speed Number: 3
Max flow: 32.9 US gpm
Maximum head: 52.5 ft
Material: Bronze
Maximum operating pressure: 145.04 psi
Type of connection: DIN
Main frequency: 60 Hz
Rated voltage: 3 x 208-230 V
Phase: 3
Horse Power: 3/4
Connection Type: Flanged x Flanged

Downloads

Specification Sheet
