Specs

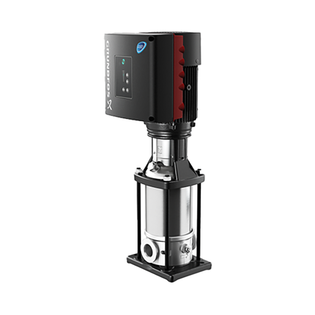

| Spec_Product name | CRE 20-8 AN-GJ-A-E-HQQE |
| Spec_Rated flow | 111 US gpm |
| Spec_Main frequency | 60 Hz |
| Spec_Maximum operating pressure | 363 psi |
| Spec_Maximum ambient temperature | 104 °F |
| Spec_Type of connection | ANSI / JIS |
| Spec_Stages | 8 |
| Spec_Impellers | 8 |
| Spec_Base Material | Cast iron |
| Spec_Impeller Material | Stainless steel |
| Spec_Max pressure at stated temperature | 363 psi / 250 °F, 363 psi / -4 °F |
| Spec_Connect code | GJ |
| Spec_Size of inlet/outlet connection | DN 50 |
| Spec_Size of suction & outlet port | 2 inch |
| Spec_Rated voltage | 3 x 460 V |
| Spec_Horsepower | 20 |
| Spec_Max head | 557.8 ft |
