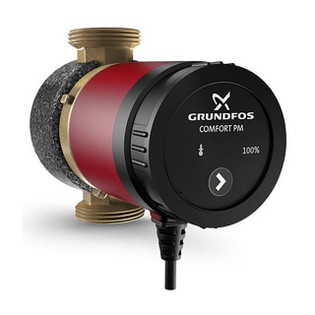

The Grundfos COMFORT 10-16 T PM BU/LC pumps are designed for recirculation of domestic hot water in single
- and two-family houses securing hot water instantly to all faucets.
The pumps have a corrosion-resistant pump housing suitable for drinking water and are powered by a single-phase, high-efficiency ECM
with permanent-magnet rotor.

The pump has an integrated temperature control mode that controls the circulation of domestic hot water based on the liquid temperature
measured in the pump. The temperature control mode uses an integrated temperature sensor to switch the pump on and off based on preset temperature limits.
These dynamic temperature limits are set automatically. Manual setting is not needed. Additionally, the pump can be set to continuous 100 % mode.
COMFORT 10-16 T PM BU/LC has a built-in isolating valve and a non-return valve. This ensures that maintenance can be carried out
without draining the system. The non-return valve also prevents reversed flow during operation.

Features

• Continuous 100 % mode for commissioning and temperature control mode to save heat energy.
• Quick and simple electrical installation.
• Dry-running protection protects the pump against dry running during startup and normal operation.
• Easy-to-clean and lime-resistant spheric rotor.
• Noiseless operation due to liquid-lubricated bearing.
• No leakage risk due to a static seal.
• Easy maintenance and cleaning through the easy-to-separate pump head.
• No additional motor protection necessary due to integrated motor electronics.

Specs

Product name: COMFORT 10-16 T PM BU/LC
Product No: 99412493
Speed no: 1
Rated flow: 1.45 US GPM
Rated head: 1.841 ft
Head max: 5.25 ft
Pump housing: Brass
Impeller: Composite
Maximum operating pressure: 145.04 psi
Type of connection: 1 1/4" NPSM
Pipe connection: 1 1/4" NPSM
Pumped liquid: Water
Liquid temperature range: 35.6 .. 176 °F
Selected liquid temperature: 140 °F
Mains frequency: 60 Hz
Rated voltage: 1 x 115-230 V
Type of cable plug: NEMA 1-15P
