Description

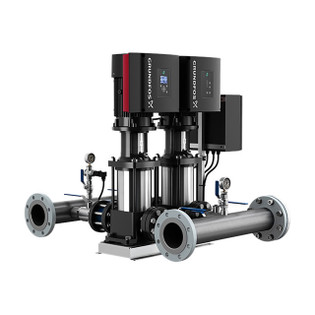

Energy efficient pressure boosting system for boosting of clean water. Available with 2 or 3 parallel connected frequency controlled pumps, integrated advanced controller and all necessary fittings.
Contact Us
Available 9am - 5pm EST
Responses within 30 minutes
Online 9am - 5pm EST
Quick Links
Contact Us
Available 9am - 5pm EST
Responses within 30 minutes
Online 9am - 5pm EST
Quick Links
Energy efficient pressure boosting system for boosting of clean water. Available with 2 or 3 parallel connected frequency controlled pumps, integrated advanced controller and all necessary fittings.
| Spec_Main pump type | CRE 20-2 |
| Spec_Min Flow System | 0 US GPM |
| Spec_Max Flow System | 299 US GPM |
| Spec_Maximum Head | 137.1 ft. |
| Spec_Number Of Pumps | 2 |
| Spec_Manifolds | Stainless steel |
| Spec_Maximum Operating Pressure | 232.06 Psi |
| Spec_Maximum Permissible Inlet Pressure | 145.04 Psi |
| Spec_Manifold Inlet | 4" ANSI |
| Spec_Manifold Outlet | 4" ANSI |
| Spec_Power (P2) Main Pump | 5 Hp |
| Spec_Rated Current | 27.6 A |
| Spec_Rated Flow | 223 US GPM |
| Spec_Pump Housing | Cast iron |
| Spec_Pumped Liquid | Water |
| Spec_Liquid Temperature Range | 32 .. 176 °F |
| Spec_Selected Liquid Temperature | 68 °F |
| Spec_Density | 62.29 lb./ft³ |
| Spec_Main frequency | 60 Hz |
| Spec_Rated voltage | 3 X 208-230 V |
| Spec_Horsepower | 5 |
