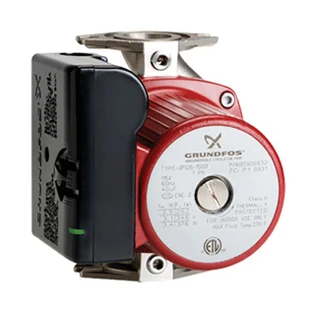

Grundfos UPS26-150SF 3 Speed Circulator Pump (Stainless Steel Body)

(No reviews yet) Write a Review
SKU:
95906632
UPC:
5700313291700
Width:
7.00 (in)
Height:
6.00 (in)
Depth:
6.50 (in)
  • Grundfos UPS26-150SF 3 Speed Circulator Pump (Stainless Steel Body)
  • Grundfos UPS26-150SF 3 Speed Circulator Pump (Stainless Steel Body)
$807.79

Description

For Residential and Light Commercial Heating Systems, This stainless steel pump can be used in both open and closed systems. Grundfos UPS pumps are of the canned-rotor type, i.e. pump and motor form an integral unit without a shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.  This pump is comparable in size to Taco 0011, 0013, and Bell & Gossett PL-36 pumps3 Speed pump for extreme flexibility.  Ceramic bearings ensure years of quiet, trouble-free operation.  Electronic starting unit provides the highest starting torque of any circulator in its class. Quick connect terminals for easy installation. 3 year warranty

Applications:

  • One and two-pipe heating systems
  • Main pumps, Zone pumps, Boiler shunt pumps, Pumps for heating surfaces
  • Calorifiers Radiant heating systems
  • Solar heating systems
  • Heat pump systems
  • Geothermal heating systems
  • Heat recovery systems
  • Two-pipe air-conditioning systems
  • Pumps for refrigeration units

Operating data:

  • Maximum Liquid Temp: 2C to 110C (36F to 230F)
  • Maximum Operating Pressure: 10 bar (145 psi)

Specs:

  • Type: 3-Speed Pump
  • Voltage:  115v
  • Material: Stainless Steel
  • Horse Power: 1/3
  • Speeds: 3
  • Max Head (Ft): 22
  • Max Flow (GPM): 53
  • Connection Type: Flanged
  • Max Pressure (PSI): 145

Manuals

Submittal sheet

View AllClose

Warranty Information

2 years
