Description

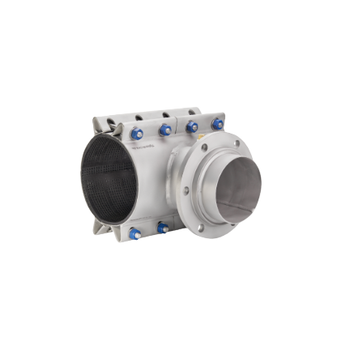

Designed to provide corrosion resistance and high pressure sealing, HYMAX stainless steel tapping sleeves are available with stainless steel, carbon steel or ductile iron flanges and are NSF 61 certified. They comply with ANSI B16.1 Class 125 drilling and have a machined centering recess for tapping valves in accordance with MSS-SP 60. A fully machined flange face allows precise alignment of the tapping valve and drilling machine. Sizes to fit IPS PVC, C900 cast iron O.D. PVC, cast iron and ductile iron pipe.
Features
- Low-carbon 304L stainless steel resists corrosion.
- Robotic MIG welds ensure consistent quality.
- Heavy-gauge side bars with gussets for strength.
- “Waffle” gasket design ensures a watertight seal.
- Brass 3/4” NPT test plug with square head.
- Flanges coated with water-based enamel.
- Available in sizes from 4”x4” to 24”x12”.
- Rated for 250 PSI (4”-12”) and 200 PSI (14”-24”).
