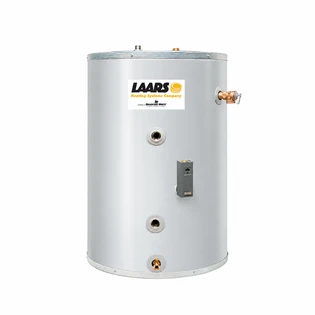

Description
Features
- Passivated 444 stainless steel alloy tank and heat exchanger with superior corrosion protection
- 1” O.D. stainless steel heat exchanger coil - low restriction minimizes pressure drop
- 2” non-CFC foam insulation covers the sides and top of tank, for rigidity, improved efficiency and less energy consumption
- Front Boiler Connections for easier installation
- Includes T&P valve and aquastat with stainless steel well
- Factory installed sediment reducing inlet tube reduces sediment build
Specs
- Capacity: 50 Gallons
- Height: 50"
- Diameter: 24"
- First Hour Delivery Rating (Gal): 269
- Continuous Draw @135°F 229
- Standby Heat Loss Rating (°F/Hr.): 0.5
- Minimum Heat Required Rate (BTU/Hr.): 145,000
- Minimum Heat Source Flow Rate (Gal./Min.): 14.0
