Description

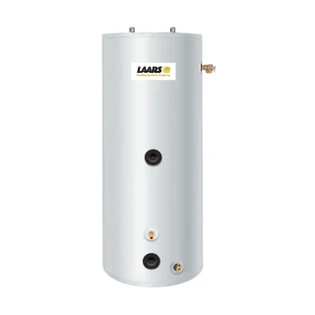

The ingenious Laars-Stor single wall was engineered to provide the lowest pressure drop, the highest hot water output and the highest amount of effective heat transfer area of any indirect fired water heater in the industry.
Features
- Heat Exchanger—Single wall glass lined steel. 1-1/2” outside diameter.
- Total Performance Sediment Reduction System—Increases first hour delivery of hot water while minimizing temperature build-up at top of tank.
- Three Protective Anode Rods—Provides corrosion protection for long trouble-free service.
- Enamel Glass Tank Lining—For unsurpassed protection against corrosion, plus Microban® antimicrobial product protection to prevent the growth of bacteria, mold and mildew on the surface of the tank lining. Factory Installed Sediment Reduction System and Powered Anodes provide better performance and a longer life.
- Immersed Adjustable Aquastat— Supplied with a fast acting immersion aquastat for automatic temperature control.
- Steel Tank— Heavy gauge steel automatically formed, rolled & welded to assure a continuous seam for glass lining.
- Potable Water Connections—¾” NPT (120 Gallon 1” NPT) true dielectric connections on 8” centers.
- Supply and Return Connections— 1” NPT female connections located on the front of the water heater.
- 2” Non-CFC Foam Insulation— Saves energy by dramatically reducing heat loss. AHRI Certified Ratings—Provides accurate performance data, based on the toughest industry standards, for proper comparison of products.
- Brass Drain Valve.
- T&P Relief Valve Included—All models feature opening on side of tank.
- Limited Lifetime Warranty on Steel Tank and Heat Exchanger.
- Six Year Limited Warranty on Parts.
Specs
- Capacity: 57 Gallons
- First Hour Delivery Rating (Gal): 215
- Continuous Draw @135°F 175
- Standby Heat Loss Rating (°F/Hr.): 0.7
- Minimum Heat Required Rate (BTU/Hr.): 115,000
- Minimum Heat Source Flow Rate (Gal./Min.): 13.7
