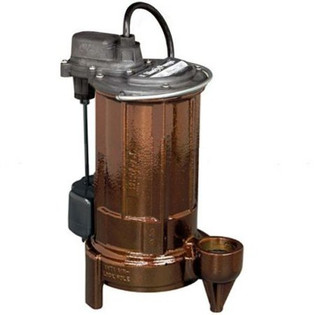

The Liberty 290 series provides a cost effective “midrange” pump for on-site waste water systems, liquid waste transfer and commercial heavy-duty sump pump applications that require higher head or more flow. Designed around Liberty’s unique “Uni-Body” casting, the 290-Series will provide years of reliable performance

Features

• 297 vertical magnetic float
• Head submersible sump/effluent pump
• Quick-connect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor (other lengths available)
• Permanently lubricated upper and lower bearings
• Oil-filled, hermetically sealed motors with thermal overload protection
• Stainless steel, removable bottom screen
• Stainless steel rotor shaft
• Stainless steel fastener

Specs

• Cord Length: 10 ft
• Flow at 5 FT
• Head: 78 GPM
• Horse Power: 3/4
• Shutoff Head (ft.): 48
• Type: Automatic
• Voltage: 115v

Downloads

Installation Manual

Specification Sheet
