Description

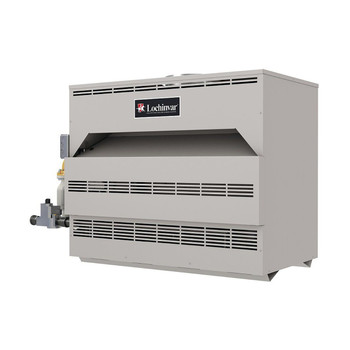

Experience the ultimate in water heating with our Copper-Fin Atmospheric Water Heater. Designed for effortless installation and durability, it prevents lime scale buildup for long-lasting performance. The innovative copper finned tube heat exchanger reduces leak risks, while the built-in draft hood is perfect for limited overhead spaces. Our durable Loch-Heat™ ceramic tile cuts overall weight by 25%. The system pairs with a separate storage tank for high performance. Easy access to components and a front-sliding heat exchanger ensure quick maintenance. Factory-installed ASME temperature and pressure relief valve included. Enjoy a 3-year heat exchanger warranty and 1-year parts warranty. Upgrade to Copper-Fin for advanced technology, easy service, and durability.
Features
- Built-In Draft Diverter
- Stainless Steel Burners
- ASME Copper Finned Tube Heat Exchanger
- 160 psi Working Pressure
- Gasketless Heat Exchanger Design
- All Bronze Circulating Pump
- Pump Delay/Freeze Protection
- Remote Tank Thermostat
- Glass-Lined Water Surfaces
- Loch-Heat Ceramic Tile Combustion Chamber
- ASME Temperature & Pressure Relief Valve
- Terminal Strip
- Automatic Reset High Limit
- Manual Reset High Limit
- Self Diagnostic Indicator Lights
- 24 Volt Control System
- CSA Design Certified for Alcove Installation
- CSA Design Certified for Installation on Combustible Floors
Specs
- Gallon Capacity: 1.0
- Heating Surface (Sq. Ft.): 30.5
- Water Connections: 2”
- Drain: 3/4”
- Water Flow Rate (GPM): 30
- Head Loss (Ft. of HD.): 6.5
- Max. Working Pressure (PSI): 160
- Max. Water Hardness (Grains): 25
- GPH @ 70°F Rise: 436
- GPH @ 100°F Rise: 305
- GPH @ 140°F Rise: 218
- Number of Relief Valves: 1
- Relief Valve Size: 3/4”
- Relief Valve Rating (MBH): 500
- Relief Valve Pressure Rating (PSI): 150
- Relief Valve Temperature Rating (°F): 210
- Gas Inlet Connection: 3/4”
- BTU/Hr Input: 315,000
- Voltage/Heater: 120V
- Height: 29-1/2”
- Width (includes pump): 42-1/4”
- Depth: 21-1/2”
- Vent Size: 8”
- Firing Controls: F9 - Intermittent Spark Ignition (Standard CW 315-500)
