Description

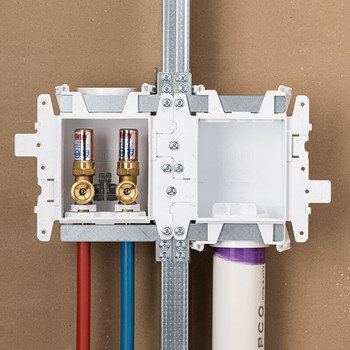

The Oatey Moda Supply Box System is designed to meet the needs of plumbing contractors for washing machines, ice makers, lavatories, toilets, dishwashers, SureVent Air Admittance Valve, and gas applications. The universal, single-box platform provides maximum versatility, installation simplicity, and rugged reliability. MODA Supply Box System is the ultimate solution for speed and flexibility. Using a single-box platform provides significant convenience to installers. One universal faceplate and common metal brackets can be used on any MODA Fire-Rated Supply Box. Oatey products have earned the trust of plumbing professionals for over 100 years.
Features
- Connects to copper supply line with sweat connection
- Moda fire-rated washing machine outlet box
- 2 in. drain opening fits PVC or ABS Sch. 40 DWV pipe
- Includes a faceplate, a pre-installed intumescent pad for protection under extreme heat, metal brackets, and a debris cover
- Includes two valves with 3/4 in. male thread outlets and a two-piece design that makes valve replacement easy to repair without damaging drywall
- Unique interlocking wing flanges accommodate on-stud and straddle-studs; advanced snap-lock design allows for easy assembly/disassembly and connection to another MODA box
- Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers; valves rated to 150 PSI air and 250 PSI water
- Infinite configuration options for easy, flexible installation and a dual box design provides ideal options for stacked washer/dryers and space-limited laundry rooms
- Includes tool-free 1/4-turn test plug with a gasket to prevent knockouts falling down the drain pipe and an emergency drain port
- Box made of high-impact polystyrene stands up to the roughest job site abuse; listed to IAPMO PS-54
- Listed to Warnock Hersey to meet ASTM E-814 and UL 1479 for both 1-hour and 2-hour wood and steel stud wall installations; listed with Massachusetts Board of Plumbing
Specs
Tailpiece: Copper
Hammer Arrestor: Yes
Valve Body Material: Brass
Weight: 2.5 lb.
Brand: Oatey
Valve Size: 0.75 in.
Color: White
Material: PVC
Product Line: MODA Fire Rated
