Description

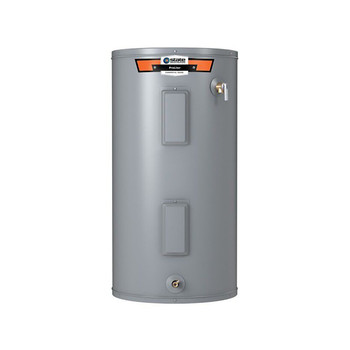

The State EN6 50 DOLBS is a 50-gallon lowboy residential electric water heater designed for installations with limited vertical clearance.
Features
- 50-gallon lowboy model ideal for height-restricted installations.
- Dual 4500-watt elements (rated at 240 V; actual output lower on 208 V).
- Minimum element wattage 4000 W per manufacturer rating at 240 V.
- Blue Diamond® glass coating helps resist corrosion.
- CoreGard™ stainless steel anode rod for extended tank protection.
- Eco-friendly non-CFC foam insulation for improved efficiency (UEF 0.93).
- Brass enhanced-flow drain valve for easier maintenance.
- Includes factory-installed T&P relief valve.
Specs
Model: EN6 50 DOLBS-208-4.5
Capacity: 50 gallons (nominal)
Rated Storage Volume: 44 gallons
First Hour Rating: 60 gallons
Uniform Energy Factor (UEF): 0.93
Voltage: 208 V
Element Wattage: 4500 W upper / 4500 W lower (rated at 240 V; lower at 208 V)
Minimum Wattage: 4000 W (rated at 240 V; lower at 208 V)
Maximum Wattage: 6000 W (rated at 240 V; lower at 208 V)
Recovery @ 90°F Rise: 21 GPH
Height (A): 34"
Diameter (C): 26-1/2"
Water Connections: 3/4"
Tank Construction: Glass-lined steel
Capacity: 50 gallons (nominal)
Rated Storage Volume: 44 gallons
First Hour Rating: 60 gallons
Uniform Energy Factor (UEF): 0.93
Voltage: 208 V
Element Wattage: 4500 W upper / 4500 W lower (rated at 240 V; lower at 208 V)
Minimum Wattage: 4000 W (rated at 240 V; lower at 208 V)
Maximum Wattage: 6000 W (rated at 240 V; lower at 208 V)
Recovery @ 90°F Rise: 21 GPH
Height (A): 34"
Diameter (C): 26-1/2"
Water Connections: 3/4"
Tank Construction: Glass-lined steel
