Description

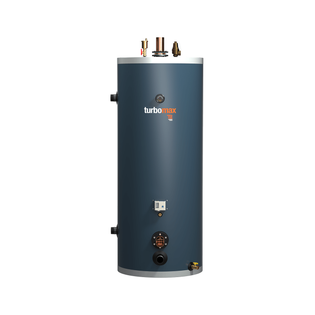

The Thermo 2000 TurboMax 80-5 is a compact instantaneous indirect water heater designed for residential and light commercial domestic hot water production. Domestic water is heated as it passes through an internal copper heat exchanger supplied by a closed-loop boiler system. With a rugged steel tank, copper heat exchanger, and factory-installed controls, the TurboMax 80-5 provides consistent performance in applications with moderate hot water demand.
Features
- Instantaneous indirect water heater for domestic hot water production.
- Internal copper heat exchanger with 32.7 sq. ft. surface area.
- Designed for use with a closed-loop boiler circuit (boiler and domestic sides do not mix).
- High-carbon steel tank with polyurethane insulation.
- Factory-installed 30 psi relief valve, temperature/pressure gauge, automatic air vent, aquastat, and drain valve.
Specs
Model: TurboMax 80-5
Tank Volume: 80 gallons
Heat Exchanger Surface Area: 32.7 sq. ft.
Domestic Water Connections: 1-1/2" copper male
Boiler TXT Connections: 1-1/2" NPT male
Maximum Operating Pressure: 150 psi (tank and heat exchanger)
Overall Height: 75-3/8"
Tank Diameter: 24-1/16"
Tank Volume: 80 gallons
Heat Exchanger Surface Area: 32.7 sq. ft.
Domestic Water Connections: 1-1/2" copper male
Boiler TXT Connections: 1-1/2" NPT male
Maximum Operating Pressure: 150 psi (tank and heat exchanger)
Overall Height: 75-3/8"
Tank Diameter: 24-1/16"
