Description

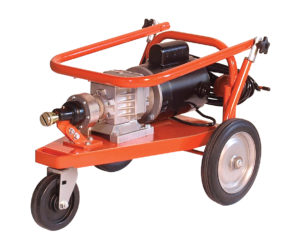

The Model 88 is almost as easy to run as a lawnmower. You push eight- or ten-foot cable sections into the line until you reach some resistance. Then attach the rear cable coupling to the machine, stand behind it, and turn it on. Watch the cable feed itself into the line. When a section has run into the drain, attach another one and keep going. This self-feeding feature also works to pull sections out of the line.
Features:
- As easy to use like a lawnmower.
- Self-feeds 8 and 10 ft. cable sections as far as 200 ft. into the line.
- Cables snap together in seconds.
- Adjustable safety clutch protects cables and operator.
- 3/4 hp motor drives 3.5 to 1 gear reducer.
- Pneumatic footswitch and ground fault interrupter.
- Folding handle and 10″ tires for easier handling.
- Made in the U.S.A.
Automatic Safety Clutch
Protects cable and operator if the cable gets caught in the line. Factory set at 100-inch pounds but can be adjusted easily for very heavy jobs or longer runs.
Folding Handle
Gives Model 88 a low profile for more convenient storage and transport. Lift handle and locking collars slide into place for secure operation. Handle on the front frame and rear crossbar make lifting and loading into the car trunk easier.

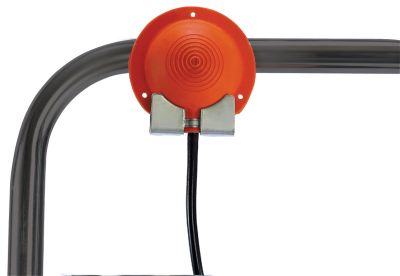

Pneumatic Power Switch
Air-actuated for safety. There is no electrical connection between the switch and motor. When working with the cable feeding tube, the switch can be removed from the handle and used as a foot pedal.
Specifications:
Weight:
80 lbs. (36 kg) without cables.
Dimensions:
21" wide x 16" high with handle folded down.
(53 cm x 41 cm)
Motor:
3/4 hp with capacitor and 20 ft. power cord with Ground Fault
Circuit Interrupter; rotates 1-1/4" diameter cables at 500 rpm.

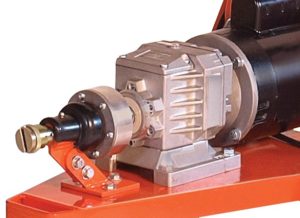

Gear Head:
Rugged cast iron body, ball bearings, cut gears.
Wheels:
10" rubber rear wheels, 6" solid rubber caster whee
