Specs

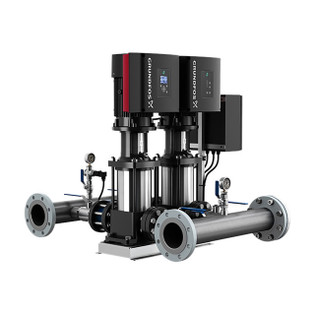

| Spec_Main pump type | CRE 15-4 |
| Spec_Min Flow System | 0 US GPM |
| Spec_Max Flow System | 242 US GPM |
| Spec_Maximum Head | 266.1 ft. |
| Spec_Number Of Pumps | 2 |
| Spec_Manifolds | Stainless steel |
| Spec_Maximum Operating Pressure | 232.06 Psi |
| Spec_Maximum Permissible Inlet Pressure | 145.04 Psi |
| Spec_Manifold Inlet | 4" ANSI |
| Spec_Manifold Outlet | 4" ANSI |
| Spec_Horsepower | 7.5 |
| Spec_Rated Current | 40 A |
| Spec_Start. Method | E |
| Spec_Rated Flow | 181 US GPM |
| Spec_Pump Housing | Cast iron |
| Spec_Pumped Liquid | Water |
| Spec_Liquid Temperature Range | 32 .. 176 °F |
| Spec_Selected Liquid Temperature | 68 °F |
| Spec_Density | 62.29 lb./ft³ |
| Spec_Main frequency | 60 Hz |
| Spec_Rated voltage | 3 X 208-230 V |
