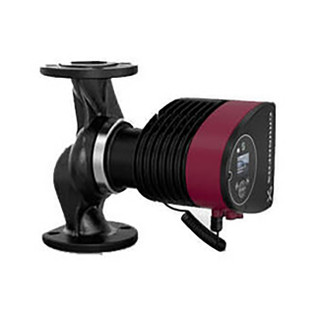

Grundfos MAGNA3 40-120 F Cast Iron Circulator Pump 115V, 3/4 HP

mpn: 98126804 SKU: 98126804 UPC: 5710629499660
(No reviews yet) Write a Review
$2,670.50
In Stock
Get it by Ships in 1 business day
Your Zip code helps us provide the most accurate delivery information.

Manuals (2)

Manual_Specification Sheet Manual_Brochure
Free Shipping This product ships free.
Easy Returns 90 day return policy.

Description

MAGNA3 40-120 F

The Grundfos MAGNA3 circulator pump is the ideal choice for almost any building project – old or new. With its unrivalled energy efficiency, all-encompassing range and built-in communication capabilities, MAGNA3 is ideal for engineers and specifiers looking to create high-performance heating and cooling systems. The pump is maintenance-free due to the canned-rotor type design. This also means that pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. MAGNA3 features an intuitive display and allows you to connect wirelessly with the Grundfos GO Remote app, giving you access to advanced reporting and monitoring. The pump includes fieldbus communication via CIM modules as well as analog and digital inputs and configurable relays. Control features include AUTOADAPT and FLOWADAPT. FLOWADAPT which reduces the need for throttling valves, thus cutting costs on system components. MAGNA3 is the superior choice for a wide range of heating and cooling applications, including:

  • Mixing loops
  • Heating surfaces
  • Air conditioning surfaces
  • Ground-source heat pump systems
  • Smaller chiller applications.

MAGNA3 is a single-phase pump and characterised by having the controller and control display integrated in the control box. The pump also has a built-in differential-pressure and temperature sensor. The pump housing is available in both cast-iron and stainless-steel versions. The composite rotor can is carbon-fibre reinforced, the bearing plate and rotor cladding are made of stainless steel and the stator housing is made of aluminium. The power electronics are air-cooled. MAGNA3 incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than a conventional asynchronous squirrel-cage motor. The pump speed is controlled by an integrated frequency converter.

* The manufacturer recommends using the Grundfos 98046408 MI 301 Go Remote for optimal setup and troubleshooting of this pump.

Grundfos MAGNA3 40-120 F Cast Iron Circulator Pump 115V, 3/4 HP

(No reviews yet) Write a Review
mpn
98126804
SKU:
98126804
UPC:
5710629499660
Width:
10.50 (in)
Height:
14.50 (in)
Depth:
6.50 (in)
$2,670.50

Description

MAGNA3 40-120 F

The Grundfos MAGNA3 circulator pump is the ideal choice for almost any building project – old or new. With its unrivalled energy efficiency, all-encompassing range and built-in communication capabilities, MAGNA3 is ideal for engineers and specifiers looking to create high-performance heating and cooling systems. The pump is maintenance-free due to the canned-rotor type design. This also means that pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. MAGNA3 features an intuitive display and allows you to connect wirelessly with the Grundfos GO Remote app, giving you access to advanced reporting and monitoring. The pump includes fieldbus communication via CIM modules as well as analog and digital inputs and configurable relays. Control features include AUTOADAPT and FLOWADAPT. FLOWADAPT which reduces the need for throttling valves, thus cutting costs on system components. MAGNA3 is the superior choice for a wide range of heating and cooling applications, including:

  • Mixing loops
  • Heating surfaces
  • Air conditioning surfaces
  • Ground-source heat pump systems
  • Smaller chiller applications.

MAGNA3 is a single-phase pump and characterised by having the controller and control display integrated in the control box. The pump also has a built-in differential-pressure and temperature sensor. The pump housing is available in both cast-iron and stainless-steel versions. The composite rotor can is carbon-fibre reinforced, the bearing plate and rotor cladding are made of stainless steel and the stator housing is made of aluminium. The power electronics are air-cooled. MAGNA3 incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than a conventional asynchronous squirrel-cage motor. The pump speed is controlled by an integrated frequency converter.

* The manufacturer recommends using the Grundfos 98046408 MI 301 Go Remote for optimal setup and troubleshooting of this pump.

View AllClose

Additional Information

Spec_Product Name:
MAGNA3 40-120 F
Spec_Product No.:
98126804
Spec_Max Head:
39.37 ft
Spec_Connection Type:
GF15/26/40/43 Flange
Spec_Horsepower:
0.02 .. 0.6 HP
Spec_Max Flow:
55.5 US gpm
Spec_Main Frequency:
60 Hz
Spec_Rated Voltage:
1 x 115 V
Spec_Pump Housing:
Cast Iron
Spec_Maximum Operating Pressure:
174.05 psi
Spec_Liquid Temperature Range:
14 .. 230 °F
Spec_Impeller Material:
PES 30%GF
Manual_Specification Sheet:
https://24hr.supply/content/98126804_MAGNA3_40120_F.pdf
Manual_Brochure:
https://24hr.supply/content/Grundfos-98126810-Brochure.pdf
