REPLACED BY 93013251

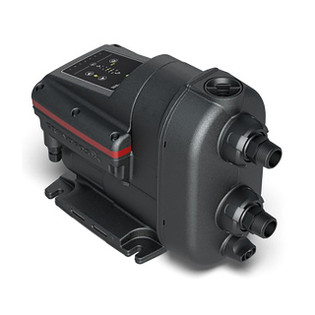

Grundfos Scala2 3-45 is a fully integrated water booster pump providing perfect water pressure in all taps at all times – even with multiple taps and showers running at the same time. It packs the pump, motor, tank, sensor, drive, and non-return valve into one compact unit. And with its intelligent pump control, Grundfos Scala2 automatically adjusts performance to both inlet pressure and water consumption in the home. Thanks to a water-cooled motor, Scala2 even offers one of the lowest noise levels of any booster on the market. Grundfos Scala2 3-45 features a built-in sensor, which constantly measures the discharge pressure. If the pressure drops below the desired level, Scala2 boosts its operation immediately to compensate for the loss of pressure. We call it intelligent pump control, resulting in perfect water pressure.
TECHNICAL
| Rated flow |
13.2 US gpm |
| Rated head |
88.59 ft |
| Head max |
147.6 ft |
| Primary shaft seal |
CARBON/CERAMIC |
| Approvals |
CULUS |
| Approvals for drinking water |
cULus NSF372,cULus DW NSF61 |
| Curve tolerance |
ISO9906:2012 3B |
| Model |
A |
MATERIALS
| Pump housing |
Composite |
| Pump |
NORYL FE1630PW PPE+PS-GS30 |
| Impeller |
Composite |
| |
NORYL FE1630PW PPE+PS-GS30 |
| Material code |
A |
INSTALLATION
| Range of ambient temperature |
32 .. 113 °F |
| Maximum operating pressure |
145 psi maximum maximum |
| Maximum permissible inlet pressure |
87 psi |
| Type of inlet connection |
NPT(M) |
| Type of outlet connection |
NPT(M) |
| Size of inlet connection |
1 inch size |
| Size of outlet connection |
1 inch pressure |
| Pressure rating for connection PN |
PN 10 |
LIQUID
| Pumped liquid |
Water |
| Liquid temperature range |
32 .. 113 °F |
| Selected liquid temperature |
68 °F |
| Density |
62.29 lb/ft³
|
ELECTRICAL DATA
| Power input - P1 |
550 W |
| Mains frequency |
60 Hz |
| Rated voltage |
1 x 115 V |
| Rated current |
4.9 A |
| Enclosure class (IEC 34-5) |
ENCLOSURE TYPE 3 |
| Insulation class (IEC 85) |
F |
| Length of cable |
6.56 ft |
| Power plug type |
Type B (NEMA 5-15), US plug 115V |
