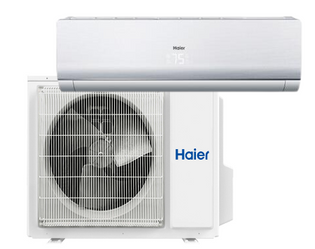

Haier 18,000 BTU Next Gen Arctic Series Single Zone Outdoor/Indoor Wall mount Package, 23 SEER, 13 EER, 208/230 Volts

Includes The Following 2 Items

Single Zone Mini Split Outdoor Unit

1 x Haier 1U18EH2VHE Next Gen Arctic Series, Single Zone System Outdoor Unit with 18,000 BTU Cooling Capacity, 20,000 BTU Heating Capacity (208/230V)

Wall Mount Mini Split Indoor Unit

1 x Haier AW18EH2VHD Next Gen Arctic Series Wall Mount Indoor Unit 18,000 BTU Cooling Capacity, 20,000 BTU Heating Capacity (208/230V)

Specs

• Product Type: Indoor/Outdoor Package
• Series: Arctic Next Gen
• Indoor Unit Type: Wall Mount
• Heating Capacity (BTU): 20,000
• Cooling Capacity (BTU): 18,000
• Heating Range Btuh: 8,700-27,000
• Heat: Heat Pump
• SEER/EER/HSPF Non-Ducted: 23/13/12
• Max Heat @ -22F: 14,000
• Fuse: 30
• Voltage: 208/230V

• Wireless Remote Controller: Included
• Decibel Rating: 47 dBA
• Number of Cooling Speeds: 5
• Air Filter Included: Yes
• Adjustable Air Direction: Yes
